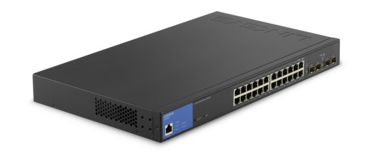

Linksys LGS328PC
24-Port Managed Gigabit PoE+ Switch 250W with 4 1G SFP Uplinks TAA Compliant
Get a Quote!
Click here to jump to more pricing!
Overview:
Designed for security and speed, Linksys Managed Gigabit PoE+ Switches provide a business-class network you can grow on.
Power over Ethernet Plus (PoE+)
Linksys managed switches support the latest 802.3at (PoE+) standards and provide up to double the power budget per Gigabit Ethernet port while offering 802.3af (PoE) backwardcompatibility. Power over Ethernet reduces electrical wiring costs, simplifies installation, and supports network devices such as IP cameras and wireless access points in optimal indoor and outdoor locations.
Network Expansion
Linksys managed switches include features for quickly expanding and growing your network. Multiple high-bandwidth trunks between switches enhance availability and redundancy. Spanning Tree Protocol (STP) and Storm Control features help control planned or inadvertent cable loops, so you can confidently build a mesh of switches and quickly expand your network to support your growing workforce.
Network Security
Unauthorized access to the network and mission-critical data is a constant concern. Linksys managed switches help secure networks through port authentication, requiring clients to authenticate themselves before any data is passed. Advanced DHCP snooping and IP-MAC binding functions ensure network integrity and help prevent network attacks.
Quality of Service (QoS)
Numerous QoS features ensure that traffic is prioritized properly to deliver the best possible user experience for real-time applications like voice and video along with bandwidth-intensive graphic/video file uploads and downloads. IGMP snooping limits IP multicast traffic to the ports that requested it, enabling the rest of the network to operate at peak efficiency.
Key Features
- 8, 24 or 48 Gigabit Ethernet Ports
- Integrated Power over Ethernet Plus (PoE+)
- Dedicated SFP or SFP+ Uplink Ports
- Advanced Network Security and QoS
- Static Routing and IPv6 support
- Ideal for surveillance cameras, access control, ProAV, projectors, access points, VoIP phones, and other demanding applications.
- TAA Compliant
Features:
1G SFP OR 10G SFP+ UPLINK PORTS
Enable fast, dedicated connections back to your core network. Our 8-Port Ethernet switches come with 2x 1G SFP uplinks while our 24/48-Port switches come with 4x 10G SFP+ uplinks (LGS328PC comes with 4x 1G SFP uplinks).
INTEGRATED POWER OVER ETHERNET PLUS (POE+)
Makes installation simple and inexpensive by eliminating the need for additional power cables and nearby power outlets. Backwards compatible with 802.3af (PoE) standard.
NETWORK EXPANSION FEATURES
Build a mesh of Ethernet switches easily with features like Spanning Tree Protocol (STP) and storm control. They help control planned or inadvertent cable loops so you can expand your network with confidence.
ADVANCED NETWORK SECURITY
Ensure data passes to authorized clients only with port authentication and MAC-based port security. Advanced DHCP snooping and IP-MAC binding functions assure network integrity and help prevent attacks.
QUALITY OF SERVICE (QOS) TRAFFIC PRIORITIZATION
Prioritize traffic with numerous QoS features. Ideal for real-time voice and video applications as well as high bandwidth graphic or video uploads and downloads.
TAA COMPLIANT FOR GSA SCHEDULE CONTRACTS
Our Ethernet switches are manufactured in Taiwan, which is a TAA designated country approved for GSA Schedule Contracts and federal use.
Larger PoE+ Budgets for More Devices
With Linksys' new line of smart managed PoE+ switches, you get more total power budget than ever before. That means powering more PoE devices with less switches, driving more value in your network deployment.

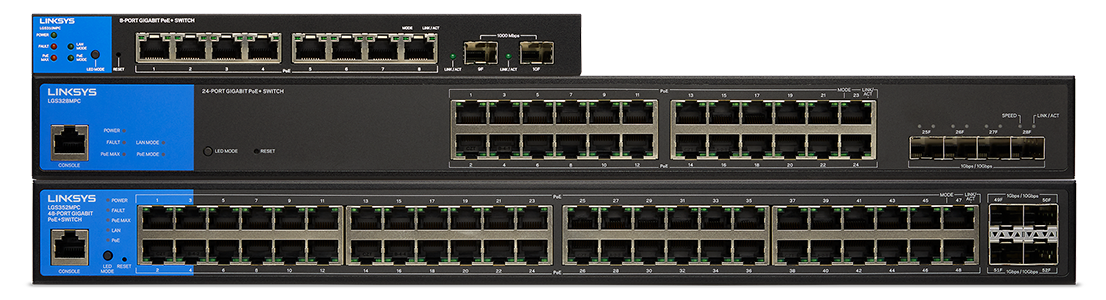

Dedicated Connections Back to the Core
Get a dedicated SFP Uplink to your core network or another switch Instead of taking away from one of your existing PoE+ ports. Plus, with our 24 and 48 port switches, you can get high speed 10G SFP+ ports to ensure maximum bandwidth capacity back to the core network for your edge devices.
Advanced Security, QoS, and Static Routing
Secure and optimize your smart managed network with advanced security and QoS features. On top of that, we've added static routing for free, typically only found in higher end switches.
TAA-Compliant Ethernet Switches
Our Ethernet switches are manufactured to be fully TAA-Compliant, so you can use them for GSA schedule and federal contracts.

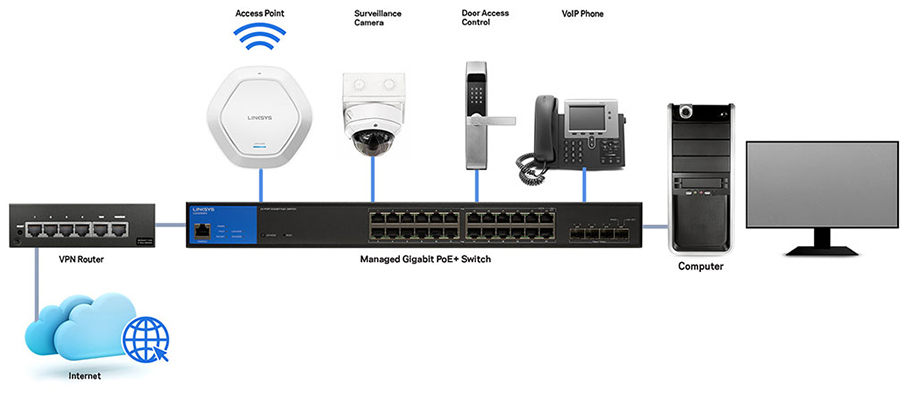

How Does It Work?
Linksys Managed Gigabit PoE+ Switches can power PoE+ enabled devices such as surveillance cameras, access points, door access control systems, VoIP phones and ProAV systems. This will eliminate the need for additional power cables and outlets, making installation simpler and less expensive.
Hardware Specifications:
| 24-Port Managed Gigabit PoE+ Switch | |
|---|---|
| Total System Ports | 24GE + 4 SFP+ |
| Copper GE Ports (RJ45) | Ports 1-24 |
| 1G SFP Ports | Ports 25-28 |
| 10G SFP+ Ports | N/A |
| Status LEDs | Power, Fault, PoE Max, LAN Mode, PoE Mode |
| CPU Memory DRAM | 256MB |
| Power Input | 100–240V 50–60 Hz 4A |
| Power Dedicated to PoE+ | 250W |
| Number of Ports with PoE+ Support | 24 |
| Max Power Consumption with PoE+ | 305.24W |
| Green Power Mode | EEE |
| Forwarding Rate | 41.66 Mpps |
| Switching Capacity | 56 Gbps |
| MAC Address | 8K |
| Jumbo Frame | 10Kbytes |
| Fans | 2, 8200 rpm (at full speed) |
| Enclosure Dimension (L x W x H) | 440 x 260 x 44 mm (17.32 x 12.24 x 1.73 in) |
| Device Weight | 3440.5 g (7.59 lb) |
| Operating Temperature | 0 to 50°C (32 to 122°F) |
| Operating Humidity | 10 to 90% RH |
| Storage Temperature | -20 to 70°C (-4 to 158°F) |
| Storage Humidity | 5 to 95% RH (non-condensing) |
| Warranty Period | 5 years |
Software Specifications:
| Model | Linksys Managed Gigabit PoE+ Switches |
|---|---|
| Number of VLANs | 256 active VLANs (4,096 range) |
| VLAN | Port-based and 802.1q VLANs, Management VLAN, Guest VLAN support |
| HOL Blocking | Head of line (HOL) blocking prevention |
| Web User Interface | Built-in Web UI for easy browser-based configuration (HTTP/HTTPS) |
| SNMP | Version 1, 2c and 3 |
| Firmware Upgrade | Web browser upgrade (HTTP) and TFTP |
| Port Mirroring | Traffic on multiple ports (up to 3 ports) can be mirrored to another port for analysis with a network analyzer |
| RMON (1, 2, 3, 9) | Embedded remote monitoring (RMON) software agent support for enhanced traffic management, monitoring, and analysis |
| SYSLOG | Support log admin password/IP change activity enhancement, Local logging: buffered/flash, Remote logging: IPv4/IPv6/ hostname(IPv4) |
| Ethernet OAM | SFP information, SFP+ DDM, Cable diagnostic, Port statistics |
| Other Management | Telnet, SSH, DHCP client, system log, configuration upload and backup via HTTP or TFTP, PING, Traceroute, dual images, SNTP |
| Security | 802.1x Radius authentication, DHCP snooping, IP-MAC binding, port security supports limited dynamic lock and locked MAC address (256 max entries per port), DOS Attack Prevention, Port Isolation (Protected Ports) |
| Link Aggregation | IEEE 802.3ad LACP, up to 8 groups with up to 8 ports per group |
| Bandwidth Control | Rate limit according to network speed, 12kbps~1000Mbps: in steps of 16kbps |
| Storm Control | Support broadcast/unknown multicast/unknown unicast 16kbps~1000Mbps: in steps of 16kbps |
| Loopback Detection | Detects and prevents loops in the network by sending out loop protocol packets and shutting down affected ports |
| Spanning Tree | IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree, IEEE 802.1s Multiple Spanning Trees (16 instances) |
| IP Multicast | IGMP, MLD |
| IGMP Snooping/Querier | IGMP (v1/v2/v3) snooping provides for fast client joins and leaves of multicast streams and limits bandwidth-intensive video traffic to only the requestors; supports 256 multicast groups |
| MLD Snooping/Querier | Support v1, MLD snooping fast leave (per-vlan), MLD querier, Dynamic router port, Static/forbidden router, Report suppression |
| DHCP | IPv4 DHCP Relay, IPv4 DHCP Relay Statistics, IPv4 DHCP Snooping |
| L3 Static Routing | IPv4 (63 max entries), IPv6 (21 max entries) |
| Access Control List (ACL) | Ingress, MC Based ACL, IPv4 Based ACL, IPv6 Based ACL, ACL Binding, Action: permit/deny |
| QoS Priority Levels | 8 hardware queues |
| Scheduling | Strict, Weighted Round Robin (WRR) |
| Class of Service | Port-based, 802.1p priority-based, IPv4/v6 IP DSCP-based |
| Auto Voice VLAN | Voice traffic is automatically assigned by OUI to a voice-specific VLAN and treated with appropriate levels |
| Standards | 802.3 10Base-T Ethernet, 802.3u 100Base-T Fast Ethernet, 802.3ab 1000Base-T Gigabit Ethernet, 802.3z Gigabit Ethernet, 802.3x Flow Control, 802.3ad, 802.1d STP, 802.1w RSTP, 802.1s MSTP, 802.1q VLAN, 802.1p Priority QoS, 802.1x Port Access Authentication, 802.1ab Link Layer Discovery Protocol, 802.3af PoE+, 802.3at PoE, 802.3az Energy Efficient Ethernet |
Documentation:
Download the Linksys Managed Gigabit PoE+ DataSheet (PDF).
